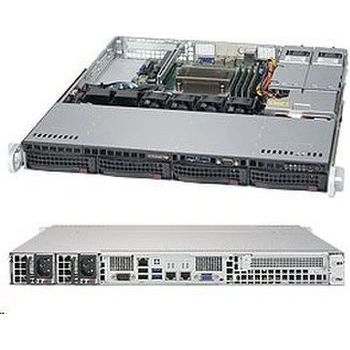

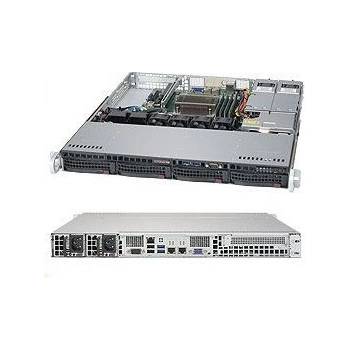

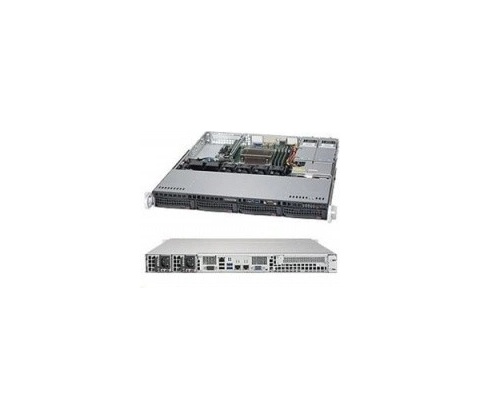

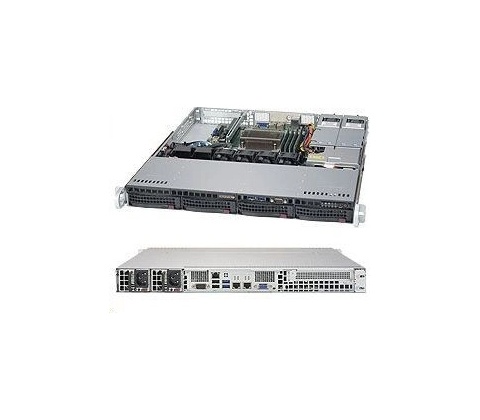

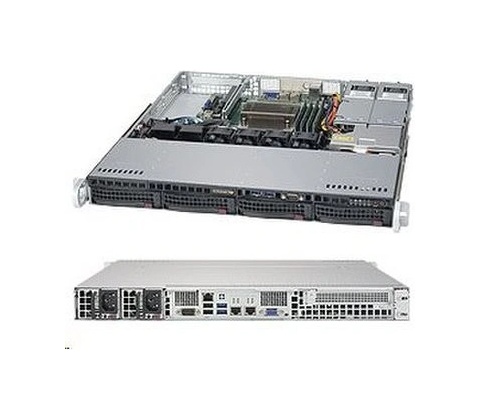

Supermicro SYS-5019S-MR

Key Features

• HA, Web hosting, File/Print
• Mission-Critical, Light load VM

1. Single socket H4 (LGA 1151) supports

Intel® Xeon® processor E3-1200 v5,

Intel® 6th Gen. Core™ i3 series 2. Intel® C236 chipset 3. 4x 3.5" Hot-swap SATA3 bays w/ RAID 4. Up to 64GB Unbuffered ECC UDIMM

DDR4 2133MHz; 4x DIMM slots 5. 1 PCI-E 3.0 x8 (in x16) AOC slot 6. 2x GbE ports with Intel® i210-AT 7. Integrated IPMI 2.0 and KVM with

Dedicated LAN 8. I/O ports: 1x VGA, 2x COM, 2x USB 3.0 (front/rear), USB 2.0 9. 400W Redundant Platinum Power

Supplies w/ BBP® option

Product SKUs

SYS-5019S-MR

SuperServer 5019S-MR (Black)

Motherboard

Super X11SSH-F

Processor/Cache

CPU

Single Socket H4 (LGA 1151) supports:

Intel® Xeon® processor E3-1200 v5,

Intel® 6th Gen Core™ i3

CPU TDP up to 80W

System Memory

Memory Capacity 4x 288-pin DDR4 DIMM slots

Up to 64GB DDR4 ECC UDIMM

Memory Type 2133/1866/1600MHz ECC DDR4 SDRAM 72-bit, 288-pin (UDIMM) gold-plated DIMMs

DIMM Sizes 16GB, 8GB, 4GB

Memory Voltage 1.2 V

Error Detection

Corrects single-bit errors

Detects double-bit errors (using ECC memory)

On-Board Devices

Chipset

Intel® C236 chipset

SATA

SATA3 (6Gbps) via C236 controller

RAID 0, 1, 5, 10 support

IPMI

Support for Intelligent Platform Management Interface v.2.0

IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

ASPEED AST2400 BMC

Network Controllers

Dual Intel® I210-AT Gigabit Ethernet LAN ports

Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output

Video

ASPEED AST2400 BMC

Input / Output

SATA 4x SATA3 (6Gbps) ports

LAN 2x RJ45 Gigabit Ethernet LAN ports 1x RJ45 Dedicated IPMI LAN port

USB 2x USB 3.0 ports (front/rear) 2x USB 2.0 ports

Video 1x VGA port

Serial Port / Header 2x COM ports (1 rear, 1 header)

SuperDOM 2x SuperDOM (Disk on Module) ports with built-in power

PC Health Monitoring

Voltage

Monitors for CPU Cores, +3.3V, +5V, +12V, +5V Standby, VBAT, HT, Memory, Chipset Voltages.

FAN

Total of 4 fan headers supporting up to 4 fans 4 fans with tachometer status monitoring

Status monitor for speed control

Status monitor for on/off control

Low noise fan speed control

Pulse Width Modulated (PWM) fan connectors

Temperature

Monitoring for CPU and chassis environment

CPU thermal trip support

I2C temperature sensing logic

Thermal Monitor 2 (TM2) support

PECI

LED

CPU / System Overheat LED

Suspend static indicator LED

UID/Remote UID

Other Features

Chassis intrusion detection

Chassis intrusion header

Chipkill support

RoHS, Halogen Free

Chassis

Form Factor 1U Rackmount

Model

CSE-813MFTQC-R407B

Dimensions and Weight

Height 1.7" (43mm)

Width 17.2" (437mm)

Depth 19.8" (503mm)

Package 8.5" (H) x 24" (W) x 29.5" (D)

Weight

• Gross Weight: 30.4 lbs (13.8 kg)
• Net Weight: 17.6 lbs (8 kg)

Available Colors

Black

Front Panel

Buttons

Power On/Off button

System Reset button

LEDs

Power LED

Hard drive activity LED 2x Network activity LEDs

System Overheat LED

Expansion Slots

PCI-Express 1x PCI-E 3.0 x8 (in x16) AOC slot 1x M.2 connector

Drive Bays

Hot-swap 4x 3.5" Hot-swap SATA3 drive bays

Peripheral Drives

Optional

Optional 2.5" drive adapter

Optional slim DVD drive

Backplane

SAS/SATA HDD Backplane (SAS support requires optional SAS controller)

System Cooling

Fans 4x 40x28mm 4-pin PWM Cooling Fans

Power Supply 400W (1+1) Redundant Platinum level power supply with PMBus and I2C

AC Input 400W: 100-240 V, 50-60 Hz

DC Output +5V standby 3 Amp

DC Output +12V 33 Amp

Certification Platinum Level Certified Platinum Level

System BIOS

BIOS Type 8MB SPI Flash EEPROM with AMI BIOS

BIOS Features

DMI 2.3

PCI 2.3

ACPI 1.0 / 2.0

USB Keyboard support

SMBIOS 2.3

Operating Environment / Compliance

RoHS

RoHS Compliant

Environmental Spec.

Operating Temperature: 10°C to 35°C (50°F to 95°F)

Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)

Operating Relative Humidity: 8% to 90% (non-condensing)

Non-operating Relative Humidity: 5% to 95% (non-condensing)
